Drilling rods supplied by IFE are a complete range of high-quality friction welded drill rods made from unwelded tempered steel 42CrMo4. These rods are built for strength, precision, and durability, with tool joints produced using a friction welding system according to API standards. All rods are treated with anti-seize coating to ensure longer life and smoother use in rotary drilling operations.
Our drill rods are available in various diameters and lengths, with different wall thicknesses (S.P./W.T.) to suit your drilling depth and ground conditions. Whether you’re working in foundation, geothermal, mining, or water well applications, our rods guarantee excellent performance and compatibility with your rig.

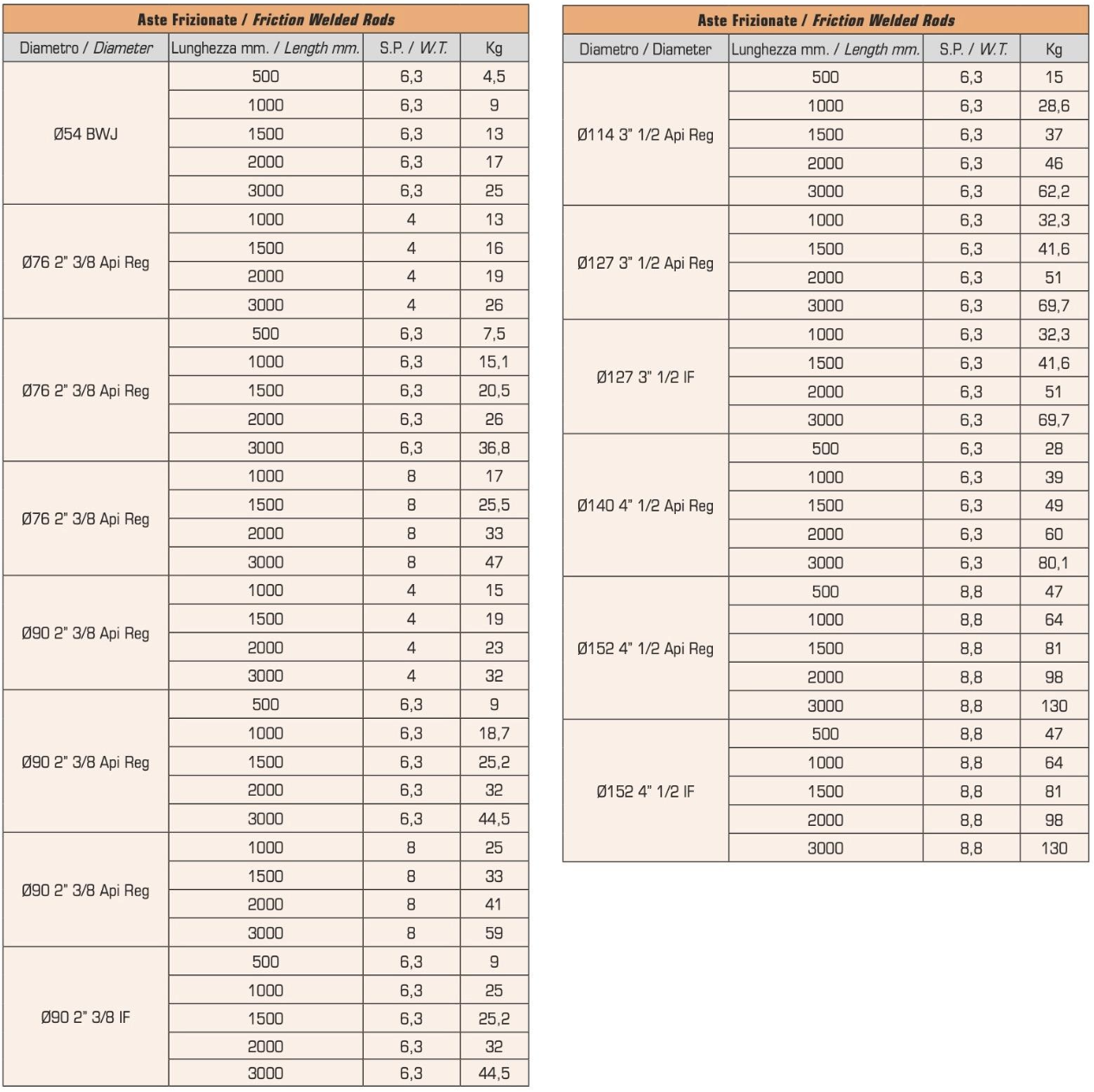

Here are the available models with specifications:
-
- Ø54 BWJ: Lengths 500–3000 mm, W.T. 6.3 mm, Weight: 4.5–25 kg
- Ø76 2” 3/8 API REG (4 mm): Lengths 1000–3000 mm, Weight: 13–26 kg
- Ø76 2” 3/8 API REG (6.3 mm): Lengths 500–3000 mm, Weight: 7.5–36.8 kg
- Ø76 2” 3/8 API REG (8 mm): Lengths 1000–3000 mm, Weight: 17–47 kg
- Ø90 2” 3/8 API REG (4 mm): Lengths 1000–3000 mm, Weight: 15–32 kg
- Ø90 2” 3/8 API REG (6.3 mm): Lengths 500–3000 mm, Weight: 9–44.5 kg
- Ø90 2” 3/8 API REG (8 mm): Lengths 1000–3000 mm, Weight: 25–59 kg
- Ø90 2” 3/8 IF: Lengths 500–3000 mm, W.T. 6.3 mm, Weight: 9–44.5 kg
- Ø114 3” 1/2 API REG: Lengths 500–3000 mm, W.T. 6.3 mm, Weight: 15–62.2 kg
- Ø127 3” 1/2 API REG: Lengths 1000–3000 mm, W.T. 6.3 mm, Weight: 32.3–69.7 kg
- Ø127 3” 1/2 IF: Lengths 1500–3000 mm, W.T. 6.3 mm, Weight: 41.6–69.7 kg
- Ø140 4” 1/2 API REG: Lengths 500–3000 mm, W.T. 6.3 mm, Weight: 28–80.1 kg
- Ø152 4” 1/2 API REG: Lengths 500–3000 mm, W.T. 8.8 mm, Weight: 47–130 kg
- Ø152 4” 1/2 IF: Lengths 500–3000 mm, W.T. 8.8 mm, Weight: 47–130 kg
All rods are available in multiple standard sizes, and custom lengths or configurations can be produced on request. Thanks to strict production standards and premium materials, IFE drilling rods deliver the highest reliability and wear resistance under tough site conditions.
